概述

       LJYA系列料浆泵为单级单吸立式悬臂式离心液下泵。叶轮为半开式，叶轮前后均配有耐磨盖,广泛应用于化工流程输送含30%以下固体颗粒，粘度低于200CP的磨、腐蚀交互作用的介质。特别适用于磷肥工业中输送磷酸、磷铵料浆等介质。

       输送介质一般低于110C。如需输送更高温度的介质,应考虑用冷却水冷却轴承。

       性能范围:流量Q= 10~ 400m³/h   扬程H=5-50m。

       FLX型系列料浆循环泵为3~ 100万/吨年磷铵工程中的一效二效料浆蒸发浓缩循环的重要配套设备，该泵具有效率高、汽蚀性能好等特点，是取代进口设备的优选产品。该系列泵同时广泛应用于化工、石油、冶金造纸等其它工业部门。

Summary

       Model LJYA series slurry pump is a vertical centilever -type single - stage - single suction centrifugal submergedpump.Its blade wheel is a semi - open type ,In the front andback of the blade wheel instals an abrasio - resistant cov-er. The pump is widely used in chemical process for conveyingmedium containing less then 30% solid granules and with vis-cosity less than 200cp, which is subject to the interaction ofcorrosion and abrasion.It is especially suitable for conveyingsuch medium as phosphoric acid, triammonium phosphorateslurry, etc.In general, the teperature of the conveying mediumis less than 110C.When conveying medium with higher tem-perature, the bearing should be cooled with cooling wa-ter.Performance scope:flowQ= 10-400m³/h Lift H= 5- 50m

       The FLX type series anticipates the syrup circulates topumpto3~ 1000000/ year in ton phosphorus ammonium en-gineering in side of an effect two effects anticipates syrup evaporate concentrated circulate of inportant kit Equipments.should pump to have efient and high, vapor eclipse functiongood etc.Characteristics, is Replace the ptimization productthat imort the equipments.That series pump is extensive at thesame time should Used for the other industry in chemical en-gineering, petroleum ,metallurgy,deckle. . Sectopm.

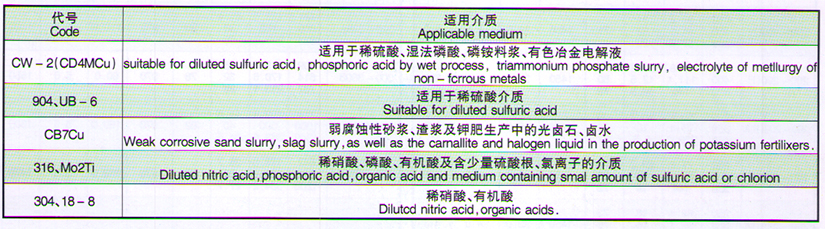

主要制造材料及适用介质:

       Main manufacture materials and applicable nedium.

除上述材料外,亦可根据用戸需要迭用其它材料制造。

       Besides the above materials ,other manufacture materials can also be chosen according to user's need.

    LJYA型泵性能参数表 LJYA Type pump Table of Performance
