WFB系列无密封自控自吸泵
概述
WFB系列无密封自控自吸泵采用“连环式”多面离心密封装置,无“跑、冒、滴、漏”之忧。由于运行过程无密封装置磨擦,无磨损,因此,使用寿命较同类产品延长数倍。
该泵具有耐温、耐压、耐磨“一次引流,终身自吸”等多种功能,自吸性能可靠,特别是采用“电动空气控制阀”具有运行可靠,拆卸方便,易于安装等特点。
该泵分别采用不锈钢、增强聚丙烯、铸钢等多种材质制造,可分别适用于各种场合,同时根据用户需要,还设计了多种形式,长方型、圆锥型,可为您提供不同安装形式的选择余地。防爆型、户外型,可适用于易燃易爆、雨雾、潮湿场合。推车移动型列可将水泵方便地送到您所需要的任何工作岗位上。
General
Model WFB no seal - self - control - self -suction pump adopts an interlink - type multiple -faced from the worry of running, emitting, dropping,leaking , Because there is no abrasion of sealingdevices, its life is several times longer than that ofsimilar products.
The pump is featured with resistance to heat,resistance to pressure, resistance ÿ to abrasion,forever self suction upon once flow induction,etc.It has reliable self suction perfor-mance. Especially because of using electric air con-trol valve" , it is featured with reliable operation, con-venient disassembling, easy installation , etc.
The pump is made of many kinds of materials such stainless steel, enforced polypropylene, caststeel , respectively.It can be used in different fields , Atthe same time, our company can design many stylesas per user ' s need, incdifferent square type and conetype, offering different forms of installation .An explo-sive proof and outdoor type is suitable for in-flammable and explosive , rain and fog accessible , wetplaces. A handcart movable type can be moved toany place you require.

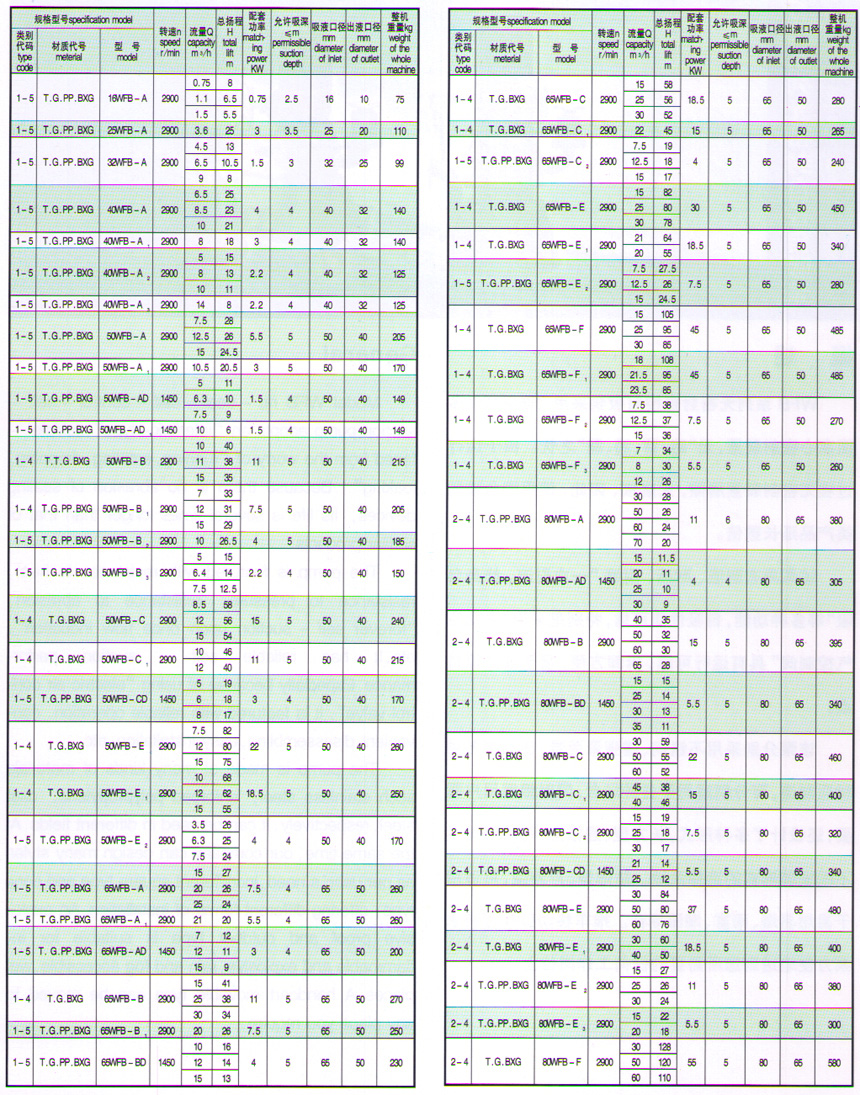

WFB型泵性能参数表 WFB Type pump Table of Performance

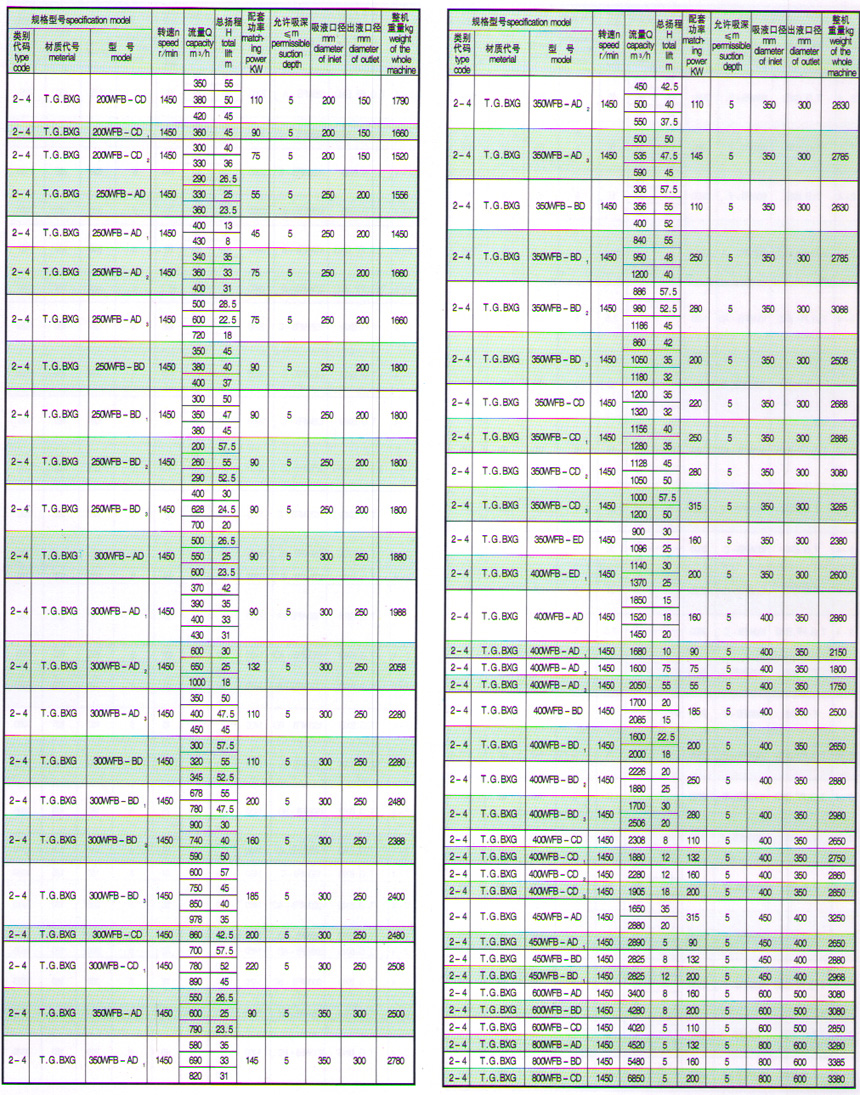

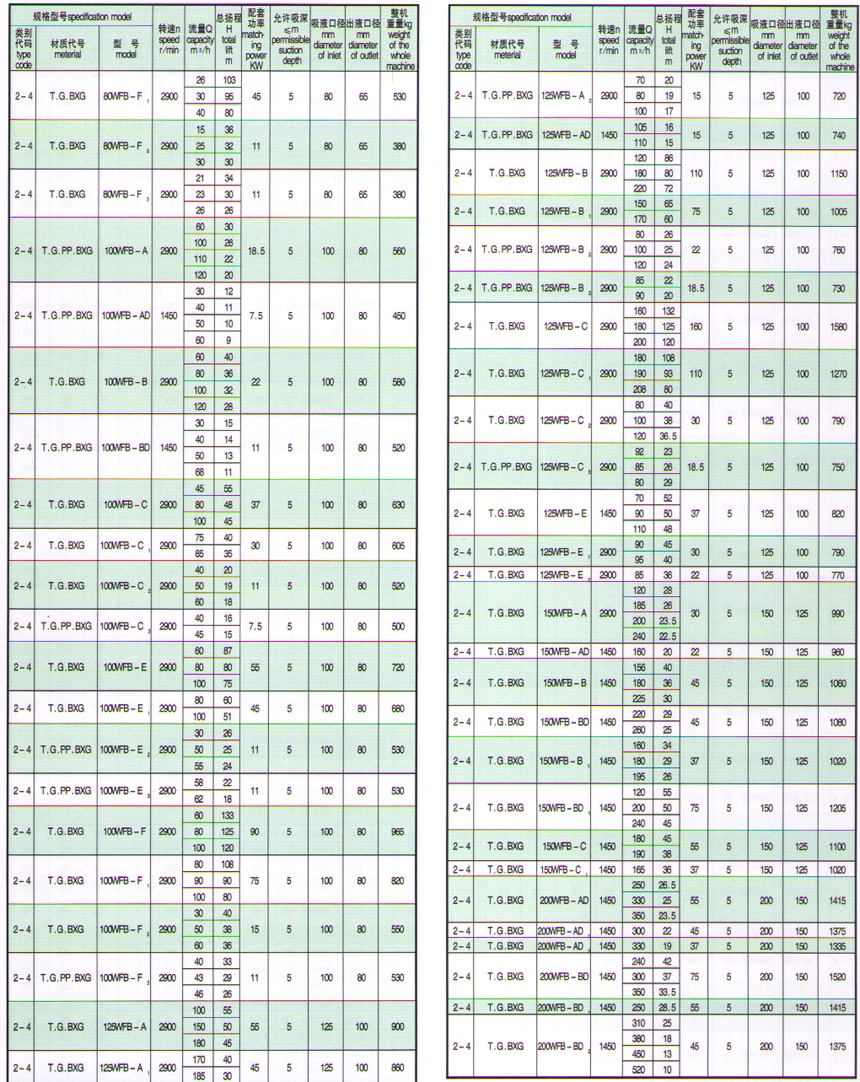

WFB型泵续表1 WFB Type pump Table 1 (continued)
